Description

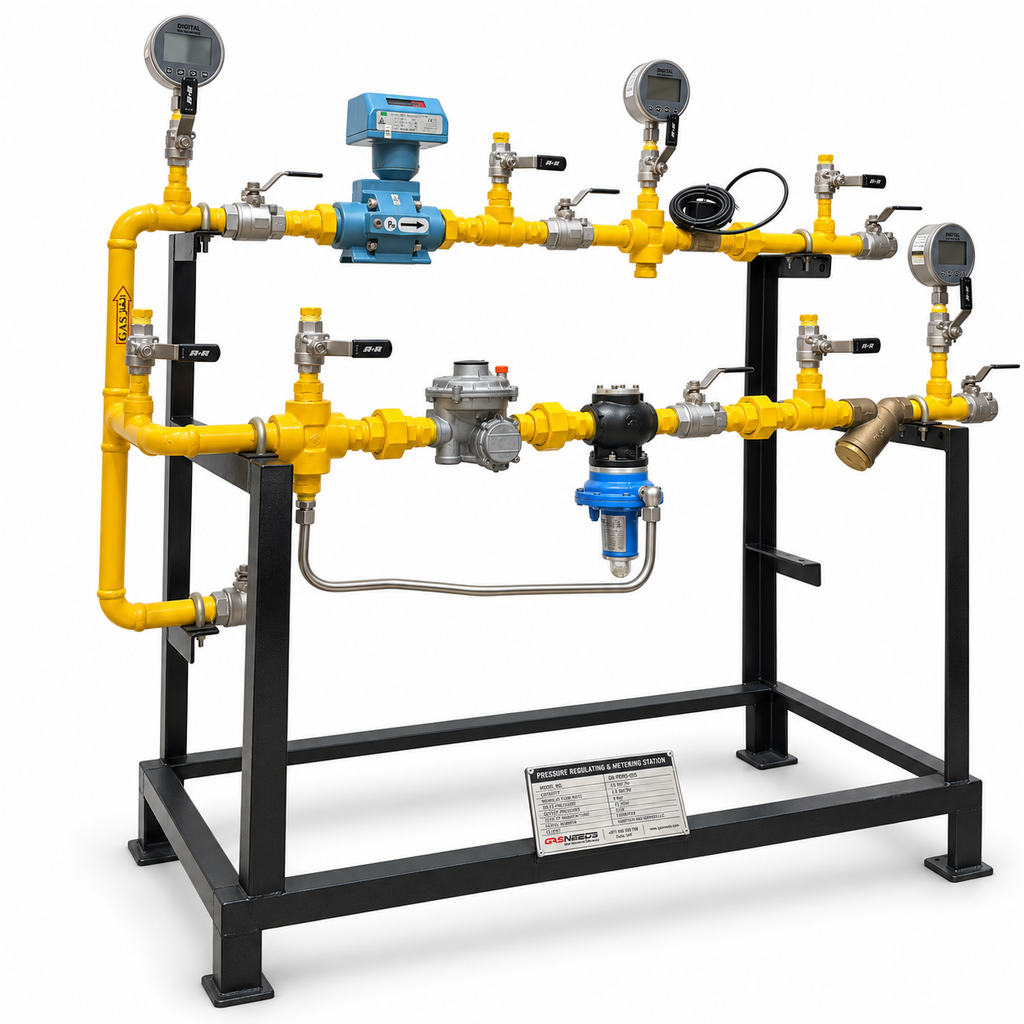

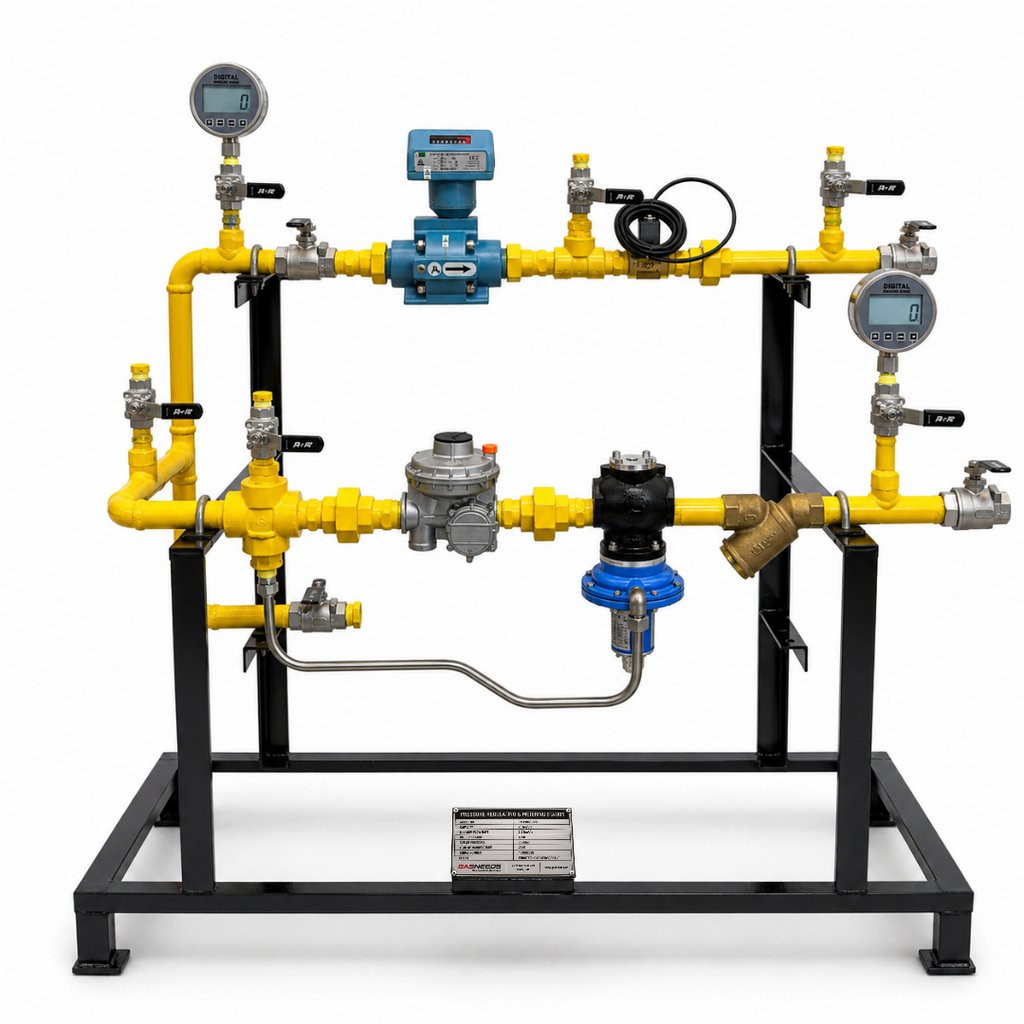

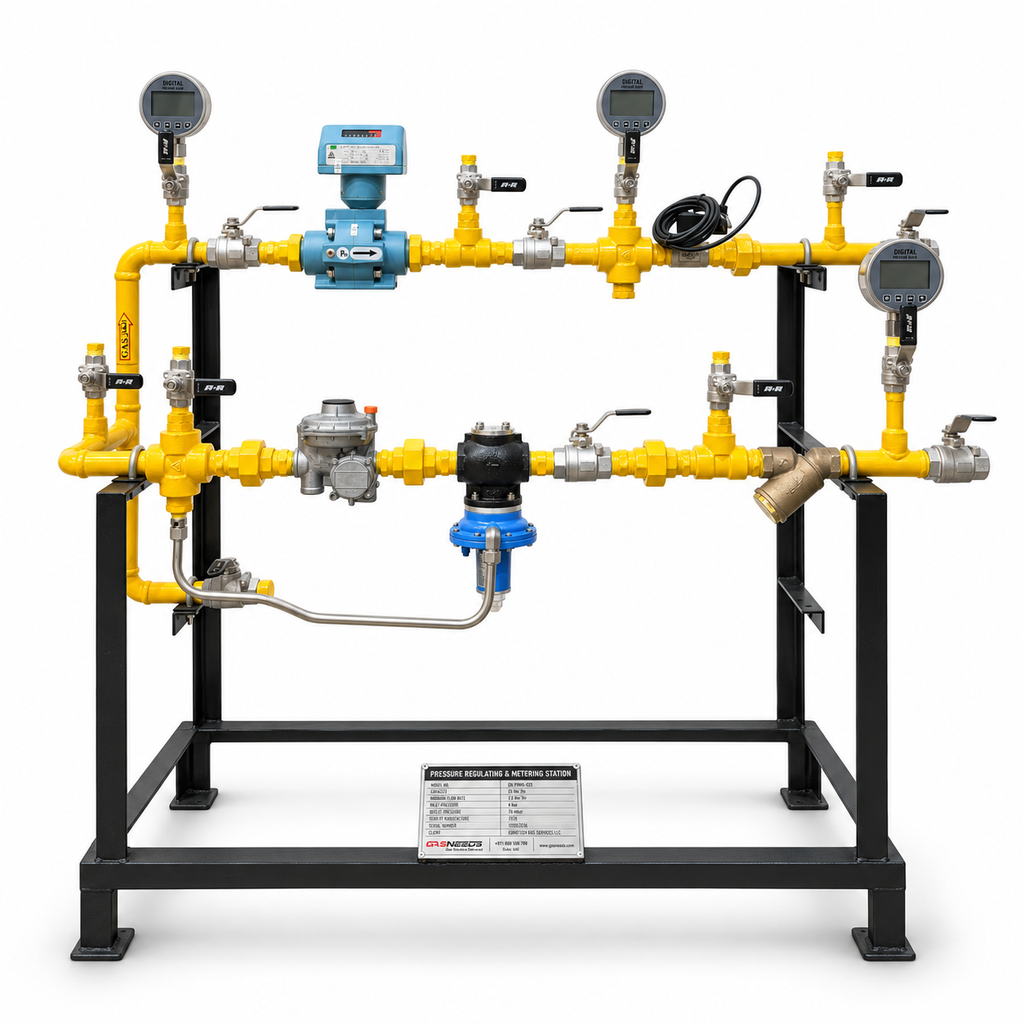

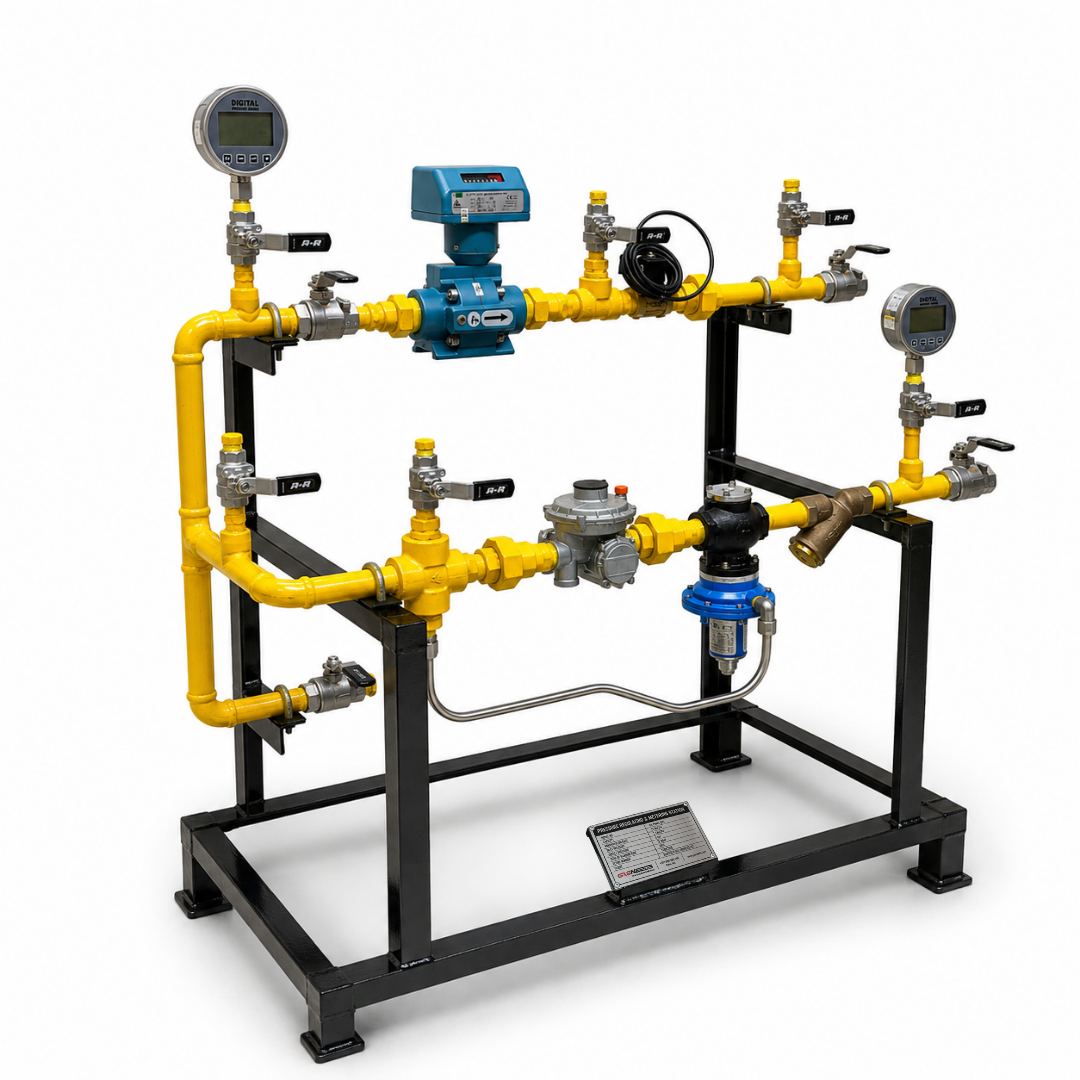

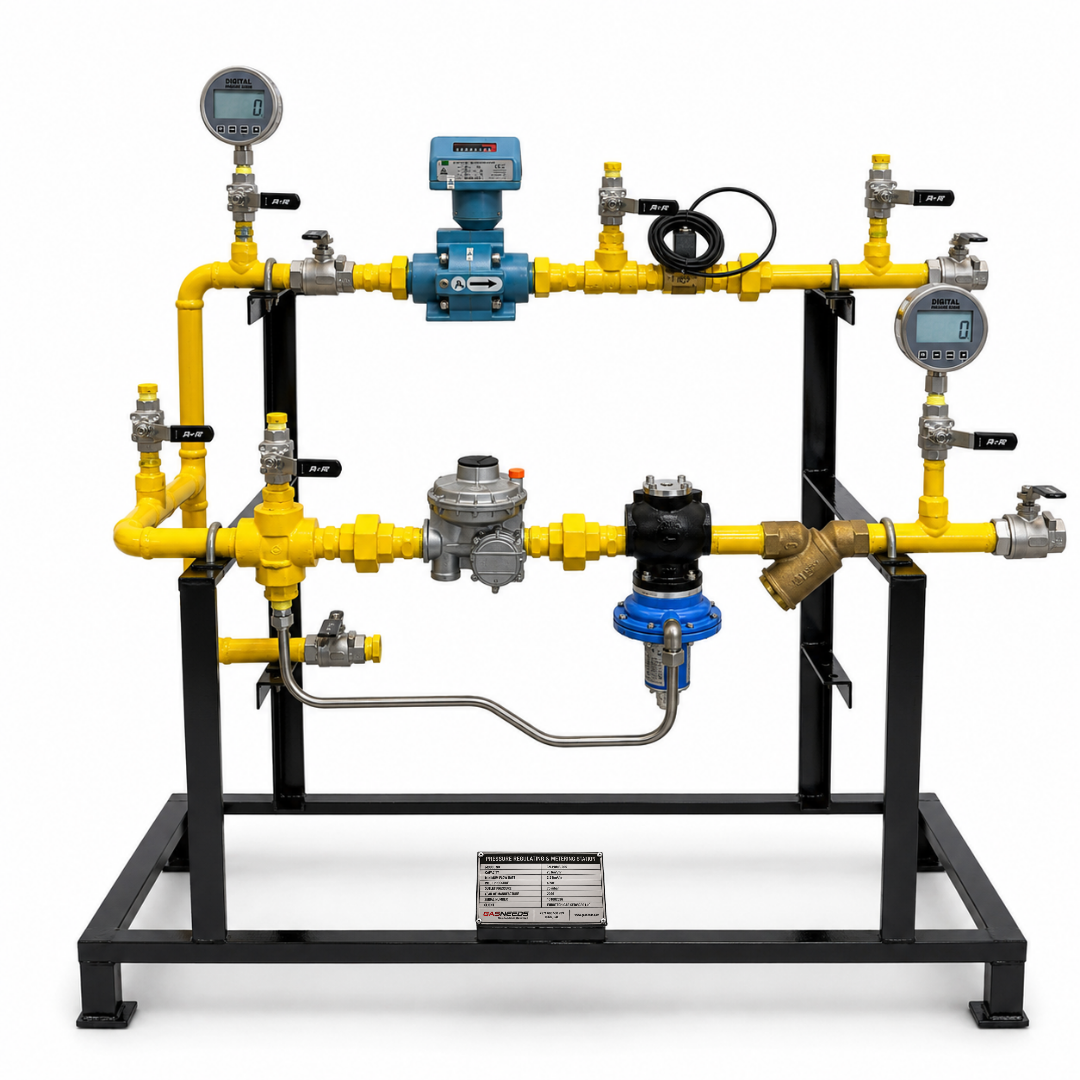

The GN-PRMS-025 Pressure Regulating & Metering Station (PRMS) is a compact, skid-mounted assembly designed to regulate gas pressure and measure gas flow for residential and industrial gas applications. It combines pressure regulation and flow metering in a single system to support consistent downstream pressure and accurate gas-flow monitoring.
Product Specifications
| Model No. | GN-PRMS-025 |
| Capacity | 25 m³/hr |
| Minimum Flow Rate | 2.5 m³/hr |
| Inlet Pressure | 4 bar |
| Outlet Pressure | 75 mbar |
| Mounting | Skid Mounted |
| Year of Manufacture | 2026 |
| Serial Number | 131082026 |
Key Features
- Integrated gas pressure regulation and flow metering.
- Designed for stable downstream pressure control.
- Provides gas-flow measurement and monitoring.
- Compact skid-mounted configuration.
- Designed for straightforward installation and maintenance access.
How This PRMS Unit Works (Video)
Watch the gas travel through the GN-PRMS-025, from the 4 bar inlet, Y-strainer and slam shut-off valve to the pressure regulator, safety relief valve, CPT-01 quantometer and explosion-proof solenoid valve.
Want the full walkthrough in writing? Read our guide: What Is a PRMS Unit? How a Gas Pressure Regulating & Metering Station Works.
